The cyclone separator
The cyclone separator is mainly used for separating the wrappers
and wood chips etc from the plastic flakes.
|

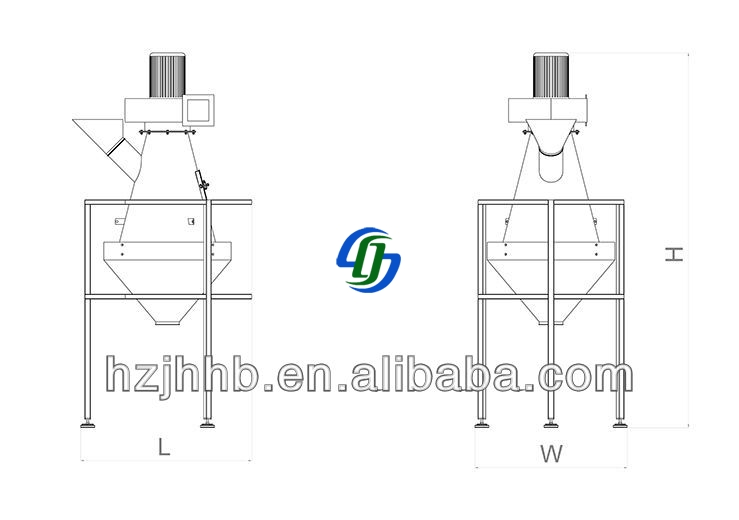

Type |
Dimension(mm) |
Power |
Weight |
Capacity |
Matrial |
||
|
L |
W |
H |
(KW) |
(kg) |
(kg/h) |
||
|
SBFL60 |
1500 |
1200 |
3000 |
7.5+0.75 |
400 |
2000 |
Carbon steel |
\
The material enters the cyclone separator throughthe charging port. When the material with impuritie enters the cyclone separating tubes, it produces strong rotating, high density material and the dust particlesare thrown to the wall under the effection of thecentrifugal force, and drop to the discharging port at the bottom of the equipment along the wall under theeffection of gravity. While the labels and other lightimpurities are blew up discharging from the top discharging port of the cyclone separator.
Technical advantage
1 .Not consume water, no environmental pollution
Our separator cyclone not consume water and has label collector to collect label\ paper and
dust.
2.Good Separation.
Need small footprint, low energy consumption, can be used in combination, processing
power from 0.5t/hr-1.5t/hr (PET).
3.Able to adapt to the separation of different plastic components.
Frequency control, adjustable air volume to meet the various plastic
